Tungsten carbide scalpel dies
Basic information about tungsten carbide scalpels die for brass rods
Scalpel dies, also called peeling dies or shaving dies.There are two kinds of carbide scalpel dies.
One is made of two main parts,tungsten carbide working core and stainlessness die cast. The other is whole made of tungsten carbide.

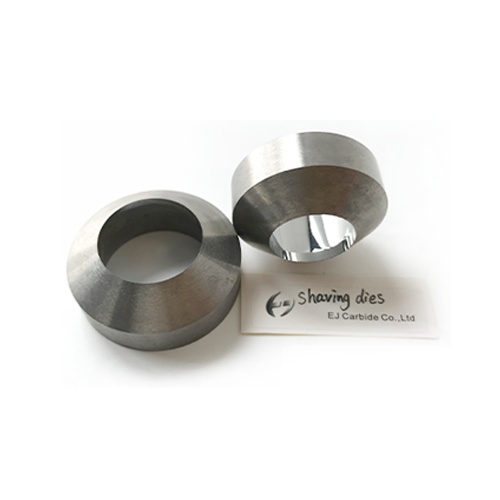

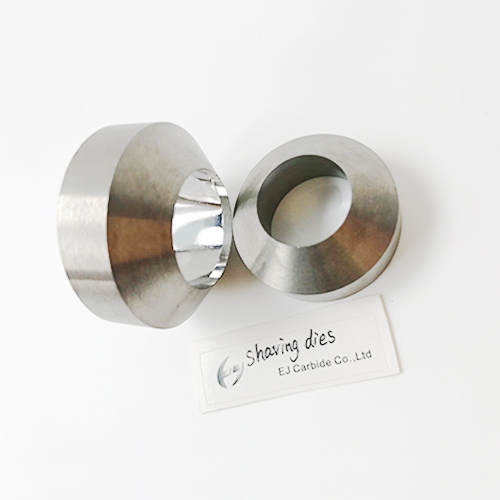

The working erea is made of tungsten carbide for both of the two kinds. This carbide scalpel showing is the second type(whole tungsten carbide made)
The first type is mainly design for small size hole dies,for the first type carbide scalpel dies, you may see the botton of this page, or click here to see detail.

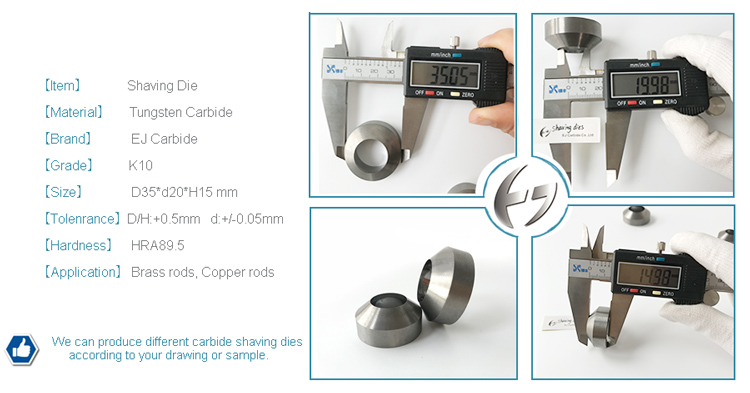

We can produce tungsten carbide shaving dies in different size according to request.
Normally speaking the size range from 0.5mm to 25mm are all OK. Because it is using to shaving the surface layer of the rods or tubes to renew the tods or tubes, so it is called tungsten carbide scalpels die or shaving die / peeling die.
The application of tungsten carbide scalpels die
Tungsten carbide scalpel dies is using for the removal of surface blemishes and material from one, or more, or all the surfaces of the Aluminium,steel,or wrought copper wire,rods or bar, thus yielding a product of excellent surface finish, close dimensional tolerance and high metal lustre.Tungsten carbide scalpel die is also using to removal the PVC coating or cleaning the isolation from the metal wire surface.
As we all know, removaling the surface layer from a metal(such as steel, copper,iron and so on) rod, or bar, would improve its appearance, and reliability in use. Surface grinding had been tried but such a procedure is rather expensive.Tungsten carbide peeling die solved this problem vell.

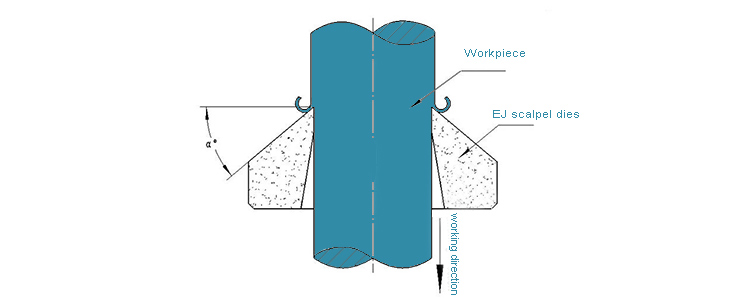

The picture below help you understand how tungsten carbide shaving dies peeling metal rods.It is also the same as tungsten carbide scalpel die working in tube or bar.

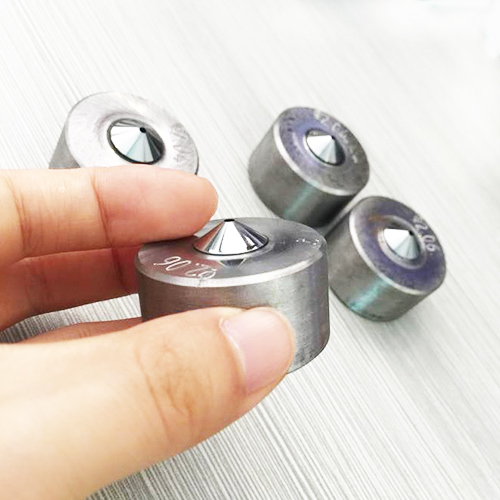

Other type tungsten carbide scalpel dies EJ Carbide have.(Click the picture will go to the related page)
You may also interest in our orders about our customized tungsten carbide scalpel dies.
