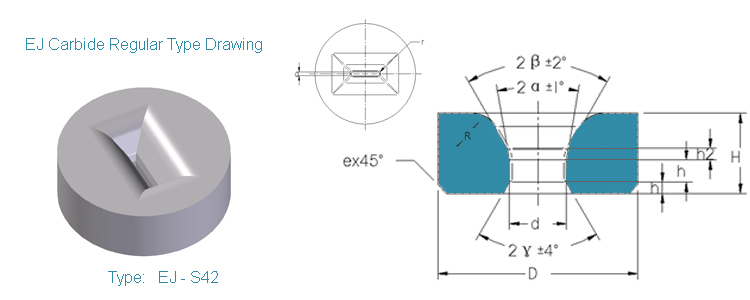

EJ-S42 type square hole tungsten carbide drawign dies nib
EJ-S42 type square hole tungsten carbide drawign dies nib

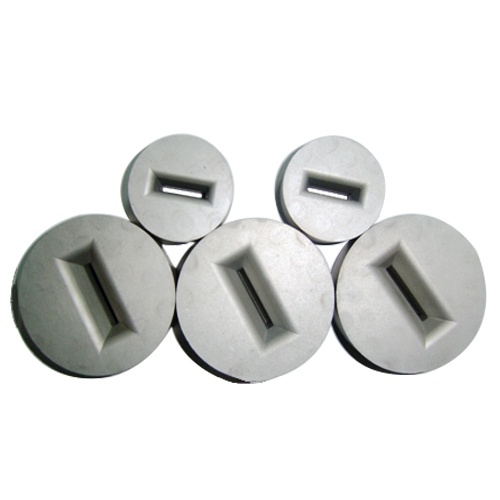

Carbide drawing dies blank is also call as carbide drawing dies nib, it was made of cemented carbide and was using in drawing matel dies such as steel wires, copper wires and so on
Below are some specification about EJ-S42 type tungsten carbide dies nib for wire drawing dies, check if there any size you are looking for,contact our sales to get more size.
we can also produce square hole cemented carbide dies nib for wire drawing dies according to your drawing or sample.
Type EJ-S42 Carbide drawing die nibs are application in drawing nonferrous metal strips such as Copper bar/strips, Brass bar/strips,Aluminum bar/strips and so on.
|
Type |
Dimension（㎜） |
Reference dimension(mm) |
|||||||||||
|
D |
H |
a |
b |
2α |
2β |
2γ |
h |
h1 |
h2 |
R |
r |
e |
|
|
S42-0201218-1.9×1.0 |
20 |
12 |
1.9 |
1.0 |
18° |
60° |
60° |
2.0 |
2.0 |
4.0 |
3.0 |
0.5 |
1.0 |
|
S42-0201218-1.9×1.4 |
20 |
12 |
1.9 |
1.4 |
18° |
60° |
60° |
2.0 |
2.0 |
4.0 |
3.0 |
0.6 |
1.0 |
|
S42-0201218-2.4×1.4 |
20 |
12 |
2.4 |
1.4 |
18° |
60° |
60° |
2.0 |
2.0 |
4.0 |
3.0 |
0.6 |
1.0 |
|
S42-0201218-3.1×1.0 |
20 |
12 |
3.1 |
1.0 |
18° |
60° |
60° |
2.0 |
2.0 |
4.0 |
3.0 |
0.5 |
1.0 |
|
S42-0201218-3.1×1.9 |
20 |
12 |
3.1 |
1.9 |
18° |
60° |
60° |
2.0 |
2.0 |
4.0 |
3.0 |
0.6 |
1.0 |
|
S42-0251518-3.9×1.0 |
25 |
15 |
3.9 |
1.0 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.5 |
1.2 |
|
S42-0251518-3.9×1.9 |
25 |
15 |
3.9 |
1.9 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.6 |
1.2 |
|
S42-0251518-3.9×2.4 |
25 |
15 |
3.9 |
2.4 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.8 |
1.2 |
|
S42-0251518-4.5×1.1 |
25 |
15 |
4.5 |
1.1 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.5 |
1.2 |
|
S42-0251518-4.5×1.5 |
25 |
15 |
4.5 |
1.5 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.6 |
1.2 |
|
S42-0251518-4.5×1.9 |
25 |
15 |
4.5 |
1.9 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.6 |
1.2 |
|
S42-0251518-4.5×2.8 |
25 |
15 |
4.5 |
2.8 |
18° |
60° |
60° |
2.5 |
2.5 |
5.0 |
3.0 |
0.8 |
1.2 |
For more information about EJ-S42 type square hole tungsten carbide drawign dies nib, please feel free to contact info@ejcarbides.com or call +86 0731 22995400
