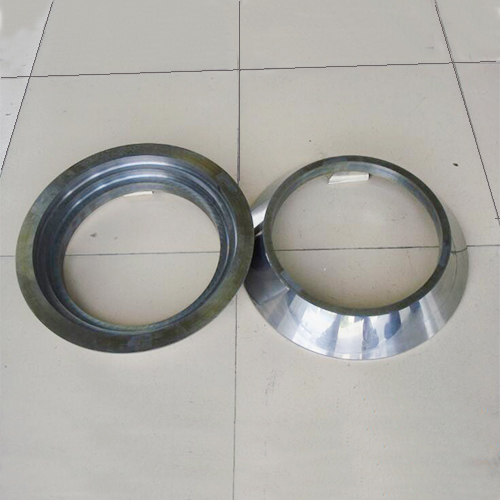

Carbide mould for flaring car wheel steel ring

Carbide mould for flaring car wheel steel ring

Material: tungsten carbide, Cemented carbide, Steel.

Grade:  YG6, YG8, YG10, YG20, YG25, YG20C and other suitable grades, which is listed in the form below.

Size: 250*43mm steel case with tungsten carbide inner square hole 210x5mm.
    Other customized sizes are also available.

Hardness:  working area hardness range from HRA80-HRA92

Density:  working area density range from 12.6 g/cm3 to 15.2 g/cm3 according to a different grade.

Application: the big size tungsten carbide drawing die is using in drawing big size metal wires and rods.

Grade information about Carbide mould for flaring car wheel steel ring

ISO Grade	Grade	Co %	Grain Size				用途
				Density	Hardness	TRS ≥
				g/cm3	≥HRA	N/MM2
K10	YG6	6	medium	14.7-15.1	89.5	1700
K10	YG6X	6	fine		91.5	1600
K20	YG8	8	medium	14.6-14.9	88.5	1800
K20	YG8X	8	fine		90	2200
K20	YG8A	8	fine/medium		89	2500
K20	YG8N	8	medium		88	1900
K40	YG10	10	medium	14.3-14.7	88	2200
K40	YG13X	13	fine	14-14.5	88	2600
K40	YG13	13	medium	14-14.5	87	2700
K40	YG15X	15	fine	13.8-14.2	88.5	3000
K40	YG15	15	medium		86.5	2800
K40	YG18X	18	fine	13.6-14	86	2800
K40	YG18	18	medium		85	2700
K40	YG20	20	fine	13.4-13.8	85	2600
K40	YG20C	20	Coarse		82	2500
	YG25	25	medium	13-13.2	81.5	2400
	YG25C	25	Coarse		80	2200

For more information about carbide mould for flaring car wheel steel ring, please contact us at +96 0731 22995400 or info@ejcarbides.com
