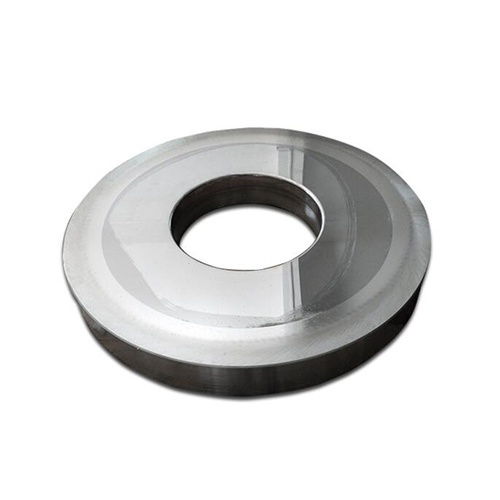

Carbide molds and fittings
Material: tungsten carbide, Cemented carbide, Steel.
Grade: YG6, YG8, YG10, YG20, YG25, YG20C and other suitable grades, which is listed in the form below.
Size: 250*43mm steel case with tungsten carbide inner square hole 210x5mm.
Other customized sizes are also available.
Hardness: working area hardness range from HRA80-HRA92
Density: working area density range from 12.6 g/cm3 to 15.2 g/cm3 according to a different grade.
Application: Carbide molds and fittings, including the right and left tempered forming modules, crimping wheels and forming wheels used in suitable automotive steel ring factories.
Grade information about Carbide molds and fittings
|
ISO Grade |
Grade |
Co % |
Grain Size |
|
Application | ||
|
Density |
Hardness |
TRS ≥ |
|||||
|
g/cm3 |
≥HRA |
N/MM2 |
|||||
|
K10 |
YG6 |
6 |
medium |
14.7-15.1 |
89.5 |
1700 |
|
|
K10 |
YG6X |
6 |
fine |
91.5 |
1600 |
|
|
|
K20 |
YG8 |
8 |
medium |
14.6-14.9 |
88.5 |
1800 |
|
|
K20 |
YG8X |
8 |
fine |
90 |
2200 |
|
|
|
K20 |
YG8A |
8 |
fine/medium |
89 |
2500 |
|
|
|
K20 |
YG8N |
8 |
medium |
88 |
1900 |
|
|
|
K40 |
YG10 |
10 |
medium |
14.3-14.7 |
88 |
2200 |
|
|
K40 |
YG13X |
13 |
fine |
14-14.5 |
88 |
2600 |
|
|
K40 |
YG13 |
13 |
medium |
14-14.5 |
87 |
2700 |
|
|
K40 |
YG15X |
15 |
fine |
13.8-14.2 |
88.5 |
3000 |
|
|
K40 |
YG15 |
15 |
medium |
86.5 |
2800 |
|
|
|
K40 |
YG18X |
18 |
fine |
13.6-14 |
86 |
2800 |
|
|
K40 |
YG18 |
18 |
medium |
85 |
2700 |
|
|
|
K40 |
YG20 |
20 |
fine |
13.4-13.8 |
85 |
2600 |
|
|
K40 |
YG20C |
20 |
Coarse |
82 |
2500 |
|
|
|
|
YG25 |
25 |
medium |
13-13.2 |
81.5 |
2400 |
|
|
|
YG25C |
25 |
Coarse |
80 |
2200 |
|
|
