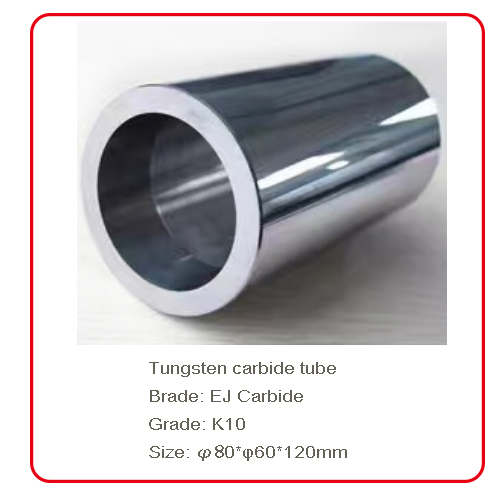

Petroleum machinery tungsten carbide bushing

 Petroleum machinery tungsten carbide bushing


The tungsten carbide bushing is used to position or protect the shaft on the rotating shaft to prevent the shaft from being worn. At the same time, the hardness of the grinding shaft is low, and the shaft without the quenching and tempering can be used, thereby reducing the processing difficulty of the related parts.

  The advantages of our petroleum machinery tungsten carbide bushing

1.       Using high-quality cemented carbide raw materials, using advanced molding technology such as cold pressing and vacuum sintering technology, we can produce hard alloy non-standard shaped products with various complex shapes, with stable performance and reliable quality.

2.       Unique production control and detection technology, the internal stress of the production of shaped products is controlled, effectively avoiding the cracking phenomenon when the product is cut online, away from defects such as pores and cracks.

3.       Non-destructive ultrasonic flaw detection, no blisters, no porosity, high density of materials; high strength, impact resistance, high wear resistance and long service life.

4.       Dimensions and specifications: Produced according to customer samples or drawings.

5.       Carbide sleeve grades are: YG6, YG8, YG11, YG15, YG20, YG6X, YG10X, YG8C, YL10.2, etc.
The grades of our petroleum machinery tungsten carbide bushing

ISO Grade	Grade	Co %	Grain Size				Application
				Density	Hardness	TRS ≥
				g/cm3	≥HRA	N/MM2
K10	YG6	6	medium	14.7-15.1	89.5	1700
K10	YG6X	6	fine		91.5	1600
K20	YG8	8	medium	14.6-14.9	88.5	1800
K20	YG8X	8	fine		90	2200
K20	YG8A	8	fine/medium		89	2500
K20	YG8N	8	medium		88	1900
K40	YG10	10	medium	14.3-14.7	88	2200
K40	YG13X	13	fine	14-14.5	88	2600
K40	YG13	13	medium	14-14.5	87	2700
K40	YG15X	15	fine	13.8-14.2	88.5	3000
K40	YG15	15	medium		86.5	2800
K40	YG18X	18	fine	13.6-14	86	2800
K40	YG18	18	medium		85	2700
K40	YG20	20	fine	13.4-13.8	85	2600
K40	YG20C	20	Coarse		82	2500
	YG25	25	medium	13-13.2	81.5	2400
	YG25C	25	Coarse		80	2200

For more information about  petroleum machinery tungsten carbide bushing, please contact us at +86 0731 22995400 or info@ejcarbides.com
